Set output variable in a Powershell VSTS Build Task

Currently I am building a pipeline that performs some actions on Azure. For example creating a Azure Storage Account. When doing this, I want to return some values from my Powershell script back into a variable of my Build Pipeline, so I can use this in another task.

After some searching I finally found out how to do this. I will explain with an example

First create an empty Build Definition and add 2 Powershell Tasks to it


In the first inline Powershell task add one line to write the initial value and the second line to override the value.

Write-host $env:OutputVar

Write-Output ("##vso[task.setvariable variable=OutputVar;]UpdatedValueInScript")

You can set the variable by using the VSTS embedded functions.

##vso[task.setvariable variable=OutputVar;]UpdatedValueInScript

The Write-Output acts as an executor for this

The second task just outputs the variable again

Write-host $env:OutputVar

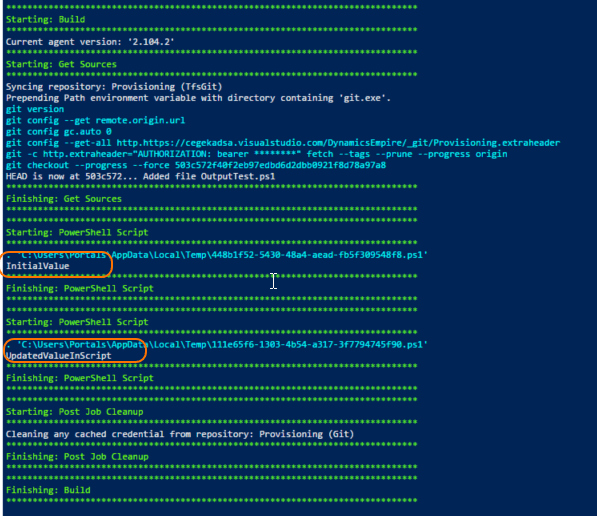

After that run the build


Happy building!

Advertisements

6 Responses to “Set output variable in a Powershell VSTS Build Task”

  1. Hi Rene,

    there is also another way of doing it, through a cmdlet present in one of the modules that do ship with the agent. Some time ago I wrote about it here http://blog.majcica.com/2016/02/19/passing-values-between-tfs-2015-build-steps/

    It is also available in the next task library, https://github.com/Microsoft/vsts-task-lib/blob/master/powershell/Docs/Commands.md#get-vststaskvariable

    Cheers

  2. Great solution, thank you for an excellent article.

  3. Thank you very much, this was most helpful. I had been getting stuck on for the last day and it was starting to really peeve me. I found someone else mention this style of syntax but they weren’t very clear on how to actually use. What was missing was exactly what you did: show a functioning example.

    Hats Off and thanks again.
