TFS as perfect tool for Scrum (Part 5) – Sprint Review and Retrospective

This is the fifth and final part of the series TFS as perfect tool for Scrum. The series is based on my session that I presented at Microsoft TechDays.

You can find more introduction in part 1

The agenda for this series is:

1. Introduction in Scrum and TFS

2. Using TFS for grooming your Product Backlog

3. Using TFS in Sprint Planning

4. Using TFS in your Sprint

5. Using TFS in your Sprint Review and Retrospective

Today, Part 5 – Sprint Review and Retrospective

Disclaimer: Within these series I talk about backlog grooming a lot. Nowadays this is known as backlog refinement and refining. Where grooming is used, you can replace that with refinement.

Part 5 – Sprint Review and Retrospective

Finally you’re there. The sprint is ready. The work has been done and the timebox for the sprint has expired. Time to relax…or not. The most important pieces of the scrum cycle are yet to come Sprint Review and Sprint Retrospective. The events are essential for Scrum teams to keep growing in their performance. The Review & retrospective focuses on looking back and looking forward, inspect the deliverable and inspect the process.

Sprint Review

The Sprint Review is the first event that takes place. This event is focused on the dialog between the stakeholders, product owner and development team. A sprint review takes up 2 hours for a two week sprint and focuses on getting feedback about the deliverable and getting insight in what is coming up next.

Usually an agenda of a sprint review meeting can look like this:

  • Walk through the Done (!!) PBI’s of the last sprint and provide a demo to the stakeholders
  • Discuss what has been done and what has not been done
  • Gather feedback from the stakeholders for future improvements
  • Discuss future sprint(s) and new areas
Challenges in Sprint Review

Sprint review can quickly become an event that is seen as a burden. Most of the times the reason is simply because the review meeting is not “interesting” enough.

Be aware that the sprint review is an interactive meeting and not just a sole demo. Also be aware that sprint review is done with stakeholders who usually do not have (and want) insights into the code. Therefore make sure you have a nice demo that focuses on the functional parts of the application and do not dive too deep into the details about how the application was built.

Make sure there are stakeholders present during the meeting. When you do a demo only for the development team the meeting does not provide the value you want and need.

Ask the same questions at the end of the demo to your stakeholders every time you do a review. They can already prepare. Questions that you can ask are for example:

  • What did you like the most ?
  • What did you not like?
  • What would you like to improve?

This blog describes what a Sprint Review can mean for your team. Also take a look at these tips !

Besides the content parts, there are also some questions I always get regarding the implementation of sprint Review.

  • How do we deal with unfinished work?
  • Where do I store the review feedback?
  • How and where do I get the Increment?
  • Where do I put the deliverables
Sprint Retrospective

What Sprint Review is for your application, Sprint Retrospective is for your process? During this event, the Scrum teams inspects their process. What did we do? How did we do it? What went well? What went wrong? The retrospective is the perfect moment to capture feedback about the process but also about the people!

When teams make a start with Scrum, the process must still be finalized. Norms have to be created within the team. Agreements about the way of working. The first retrospectives are usually very useful. People look at their process and identify the simple improvements. We need automated tests!, The build does not work properly! We need to create more tasks etc. Easy to identify but most important…Non-personal.

There are many books, websites and techniques to do a retrospective. Some of the techniques that are great to use in a retrospective are:

The hard part for the Scrum master (and essentially the team itself) is to keep the retrospective interesting. Where the majority of (IT) people love to talk about defects in the process, improvement areas, tooling etc., only a small group likes to talk about…themselves, or others. However, to get the most out of your team (happiness, productivity etc.) the personal side is really important too!

What I usually do is highlighting one subject in a retrospective. For example. When I want people to think about improvement areas I use the Starfish. When I want to focus on the team, I use a more personal exercise or play a game. This site is full of great agile games that you can play with your team !

Also this book by Esther Derby and Diana Larsen about Agile Retrospectives is worth a read !

Challenges in Sprint Retro

Retrospective is very useful to improve as a team. But not everybody is eager to share his thoughts. Beware of “silent” people and make sure everybody has an equal part in the sprint retrospective meetings. Allow time for people to write down their thoughts first, instead of directly in front of the group.

Same as with the Sprint Review, technical questions arise here as well.

  • Where do we store the outcomes?
  • Can we give people some tools to reflect before the meeting?

Use Team Foundation Server

In the previous paragraphs I talked about the Review and Retrospective and the “technical” challenges. Before I explain how Team Foundation Server can facilitate some things for the Review and Retrospective I want to share this with you.

Review and Retrospective are not about the tools !

Try to limit the use of tools (besides paper, sticky notes and a presentation beamer/laptop) during these events. The tools distract you from the real purpose of the meeting. This goes especially for the retrospective where you focus on the process and the people.

Having this said, let’s take a deeper look at some of the challenges we faced.

  • Review
    • How do we deal with unfinished work?
    • Where do I store the review feedback?
  • Retrospective
    • Where do we store the outcomes?
    • Can we give people some tools to reflect before the meeting?
How do we deal with unfinished work?

The most common question after the sprint review. How do we deal with our unfinished work? We have worked on PBI’s, some tasks are ready, some are not, resulting in an undone PBI. Scrum says, when work is undone after a sprint, it has to be put on the backlog again. The Product Owner decides whether it can be picked up in the next sprint.

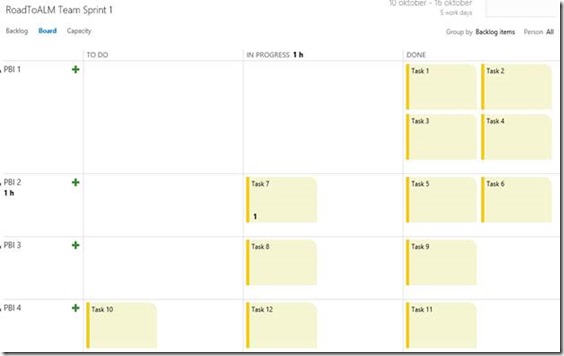

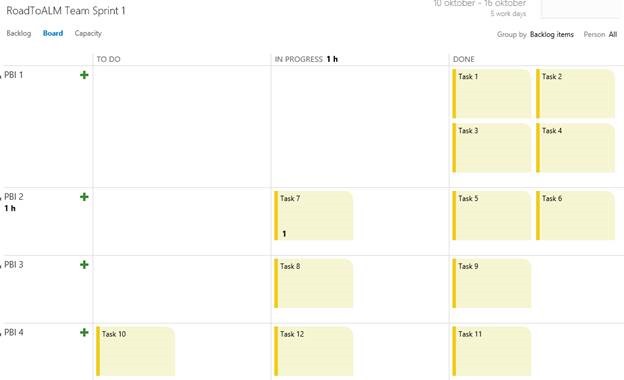

So, as an example let’s say we have a task board looking like this at the end of the sprint
clip_image002
This means, PBI 2, PBI 3, and PBI 4 should move to the backlog (or next sprint). To keep the data of the last sprint intact, we only want to move Task 7, Task 8, Task 10 and Task 12 (Undone tasks)

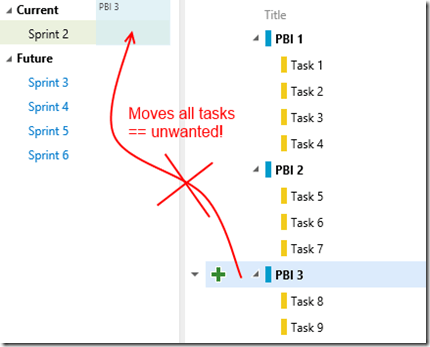

In the TFS Web Access Client, you can “drag” PBI’s from the sprint backlog to the root backlog or another sprint BUT …this results in unwanted behavior because it moves ALL the tasks under a PBI.
clip_image003

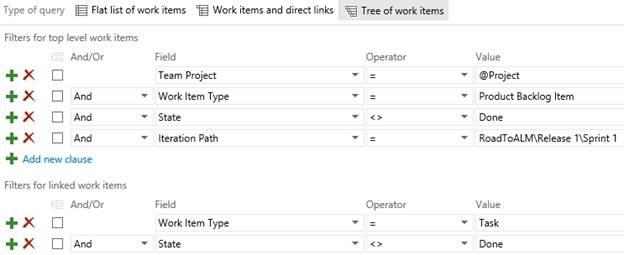

What you need to do, is create a query that extracts all undone PBI’s with all undone tasks of the sprint. You can create a simple tree query for that.
clip_image005

Resulting in this set

clip_image006

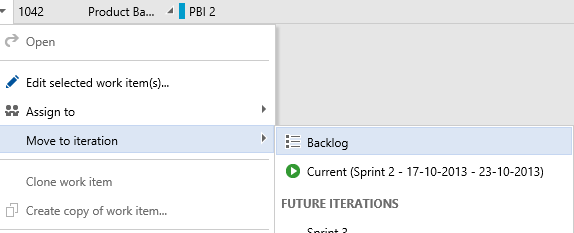

Then you use the bulk edit feature (see my previous blog post here for more details) or the quick navigation [Move to Iteration] to move them to the backlog or next sprint (don’t forget to save !)
clip_image007

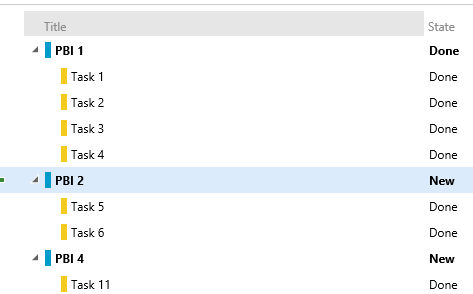

The great part is that in the first sprint, the [Done] Tasks are still displayed next to the PBI that was moved to the next sprint !

clip_image008

Where do I store the review feedback?

During the sprint review, you gather feedback. There are many ways to deal with the feedback. You can put in the Discussion field of a Work Item, You can use the feedback tool and create Feedback Request / Response Work Items or you can use the Sprint Work Item that I introduced in part 3 (download here)

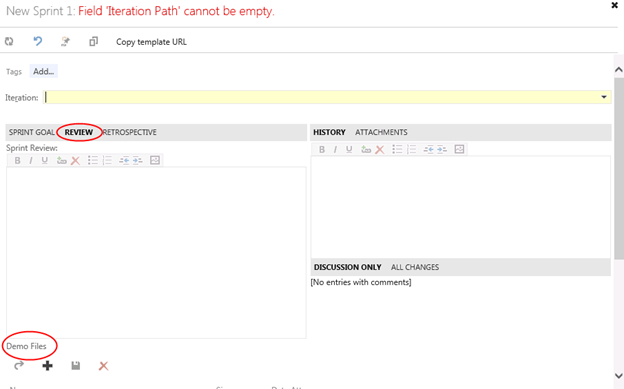

This Sprint Work Item is created during Sprint planning and contains a field for the review as well.
clip_image009

You can also put attachments in a work item. Maybe record a video of the demo and attach it as well.

Retrospective tools

To facilitate in the retrospective, we can use the Sprint Work Item again. In the zip-file that can be downloaded here, there is another work item type. Sprint Rating. Where the Sprint work item can be used to write down the outcomes of a retrospective, the sprint rating work item can be used to help people think about the sprint before they come to the meeting.

The idea is to generate a “timeline” and “moodgraph” for the team that can be discussed in the retrospective. The graph can look like this.

clip_image011

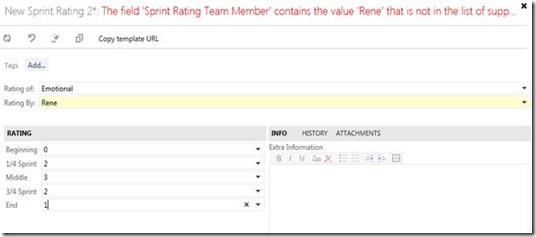

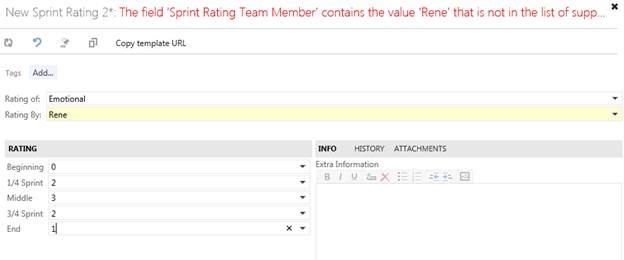

What you see is a graph for the team and graphs per person. Per person 2 Sprint Rating Work Items are filled in. One about the sprint and one about how they felt in the sprint (emotional). The sprint Rating item looks like this

clip_image012
clip_image014

By saving 5 measure point in 5 custom fields, we can generate the graph. The RDL file + queries can be found here. I use views in a separate database to query the warehouse. Read my posts about custom reports to implement this mechanism (part 1, part 2 and part 3)

Download the database queries, reports and work items here ! (http://sdrv.ms/17NuuFO)

NB: Don’t use this directly on production but test it first !!

Conclusion

The sprint review and retrospective are all about the inspection and adaption part of Scrum. Where do we stand with our product and where do we stand with our team and process. These parts of Scrum are the parts where tools can merely assist.

Let me quickly review the challenges that I often hear to see if we addressed it all.

  • How do we deal with unfinished work?
    • By using the power of TFS Queries and bulk editing work can be easily moved from one sprint to another without breaking the historical data
  • Where do I store the review feedback?
    • When implementing the Sprint Work Item, you also facilitate a location for storing information form the review. Think of text but also of attachments (videos, powerpoints etc.)
  • How and where do I get the Increment?
    • The build server of TFS makes sure you always have access to the latest build. Take it one step further and you can facilitate a full blown environment with both Lab Management or InRelease
  • Where do I put the deliverables
    • Deliverables come in all sorts. Put documents on SharePoint, put code and documents that will be shipped in TFS.
  • Where do we store the retrospective outcomes and can we give people some tools to reflect before the meeting?
    • Use the sprint and sprint rating work item to capture feedback from your team. Use the powerful reports in TFS to make this visible.

This post about the sprint review and retrospective is also the end of the blog post series “TFS as perfect tool for Scrum”. Hopefully you found it interesting. If you did, please leave a comment!

In this series I tried to highlight the power of a ALM tool like TFS but also tried to emphasize the need for process without the tools. Scrum is all about transparency. A tool can provide you with these insights by storing everything in a central place, making it easier to report

Use Scrum to define what needs to be done and use TFS and Visual Studio to define how it needs to be done !

Resources

Download the database queries, reports and work items here !
